AEC-21Y-G1
16~32A, Mode 3
230V±10% (1-phase); 3*230/400V±15% (3-phase)
Max power of 21kW
RS485,RFID,Bluetooth and 4G Remote Comm.

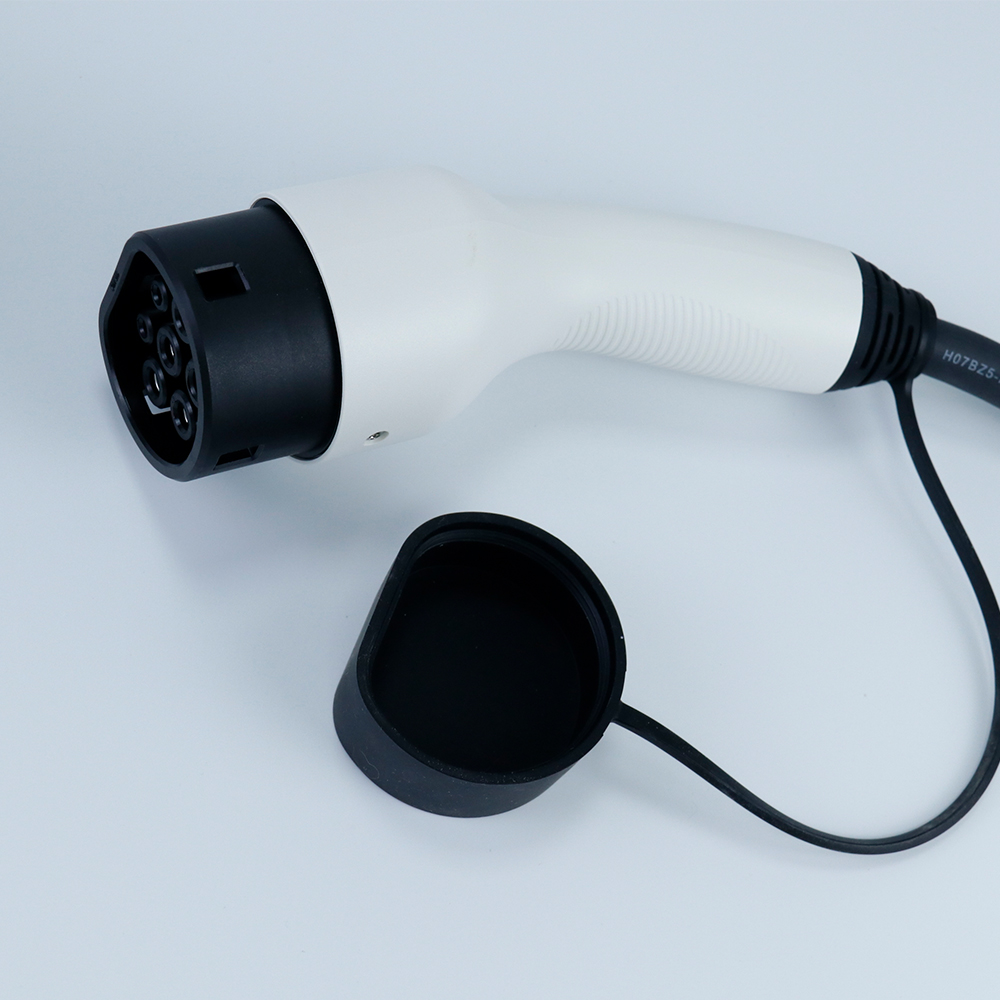

Gun Adapt Type 1 SAE J1772, Type 2 IEC 62196-2

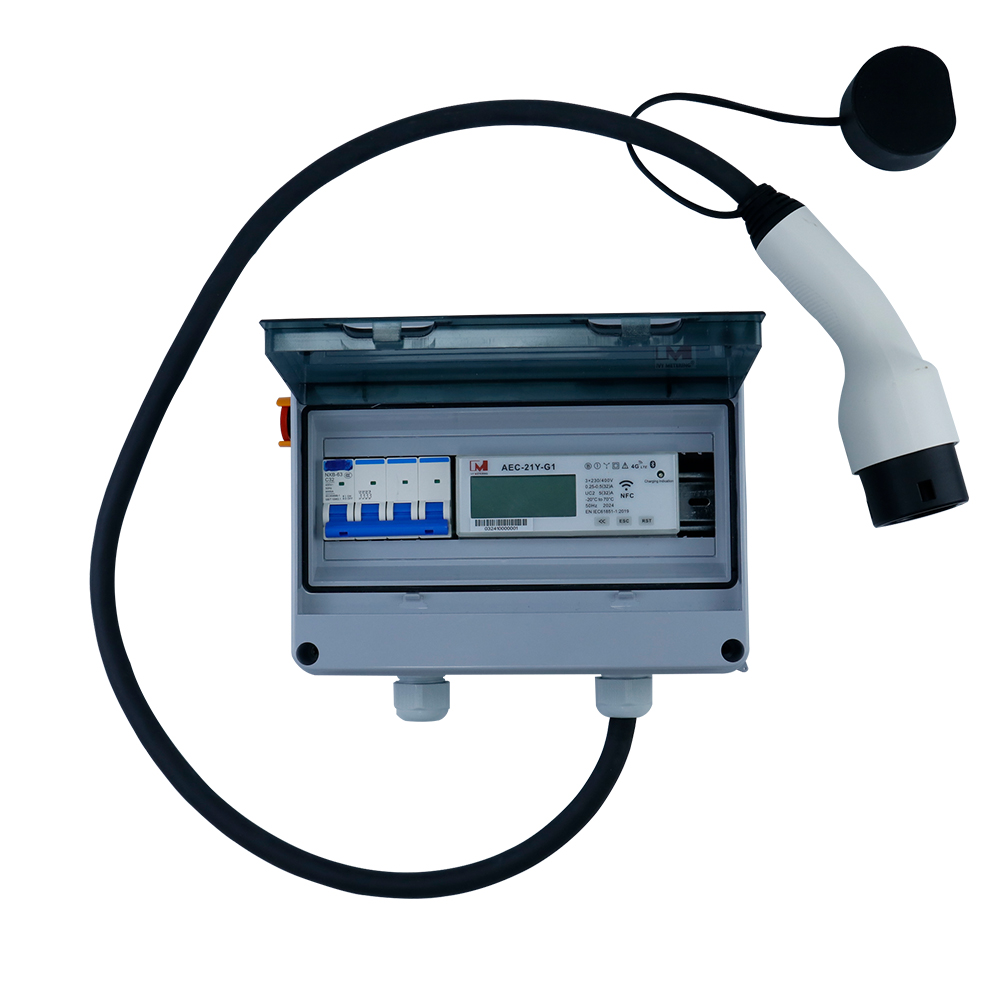

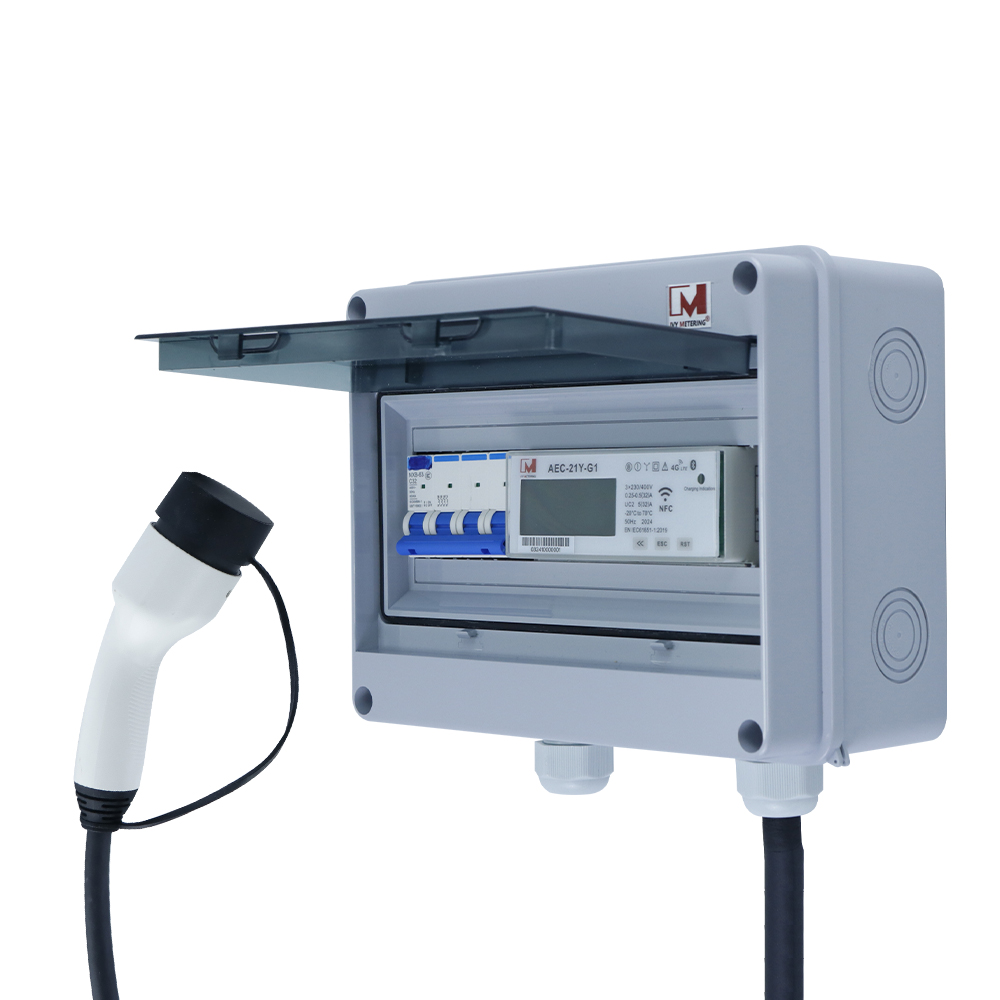

AEC-21Y-G1 is a single-phase and three-phase switchable AC EV charger with a maximum current of 32A and a maximum power of 21kw. It supports NFC, RS485, Bluetooth, 4G communication and has 14 safety protection functions. Multiple working modes can be applied to various home/commercial scenarios.
All-in-One Charging Solution: It's designed as a core component for AC electric vehicle chargers, integrating charging, metering, and leakage protection.
Efficient Charging: Supports three-phase charging with a maximum current of 32A and power up to 21kW. It allows flexible switching between single and three-phase modes, adapting to different power environments.
Smart Communication & Management: Offers RS485 for local communication and 4G for remote monitoring and management. Supports local/batch authorization modes, catering to public or private management needs, and allows for custom APP platform creation.
Versatile Payment Options: Supports card payments, mobile payments, and pre-payment options.
| Charging voltage | 230V±10%（1-phase）；3*230/400V±15%（3-phase） |
| Charging power | Max 21KW |
| Metrological | Pulse constant：1000imp/kWh |
| Frequency：50/60Hz | |
| Accurate ：Class 1.0 | |
| Communication method | 4G,Bluetooth 4.0-5.0（ 2.4 GHz） |
| NFC (for card charging),RS485（connector） | |
| Communication protocols | Ivy-bus Protocol (IVY's own protocol) |
| Temperature | Operating -25～70℃ Storage -40～80℃ |
| Humidity level | Avg≤75%, Max≤95% |
| Waterproof/mechanical rating | This rating is determined by the charging post enclosure, itself IP30 |

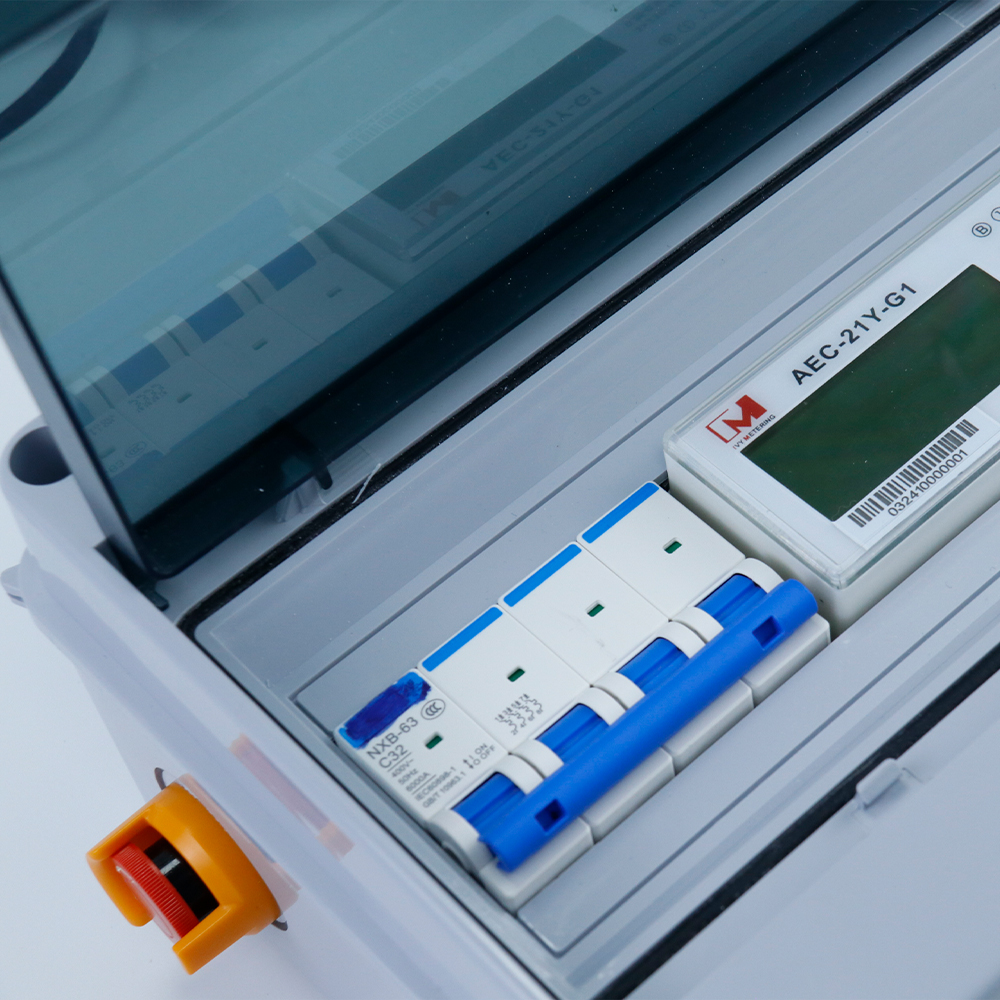

| Safety protection function | Emergency stop protection,Open cover protection, Leakage protection, Lightning protection, Overheating protection, Grounding protection, Short circuit protection, Overvoltage, under-voltage protection, surge protection, electrostatic protection,stop charging when battery full |
| Dot matrix LCD display | Charging voltage, charging current, charging energy, charging duration |
