EM719028
Multi-measurement: kWh, W, V, A, PF, Hz, etc.
Bi-directional Measurement
RS485 Modbus
CT Connected
Backlight Display
Din Rail Mounted
SO Output
3P4W

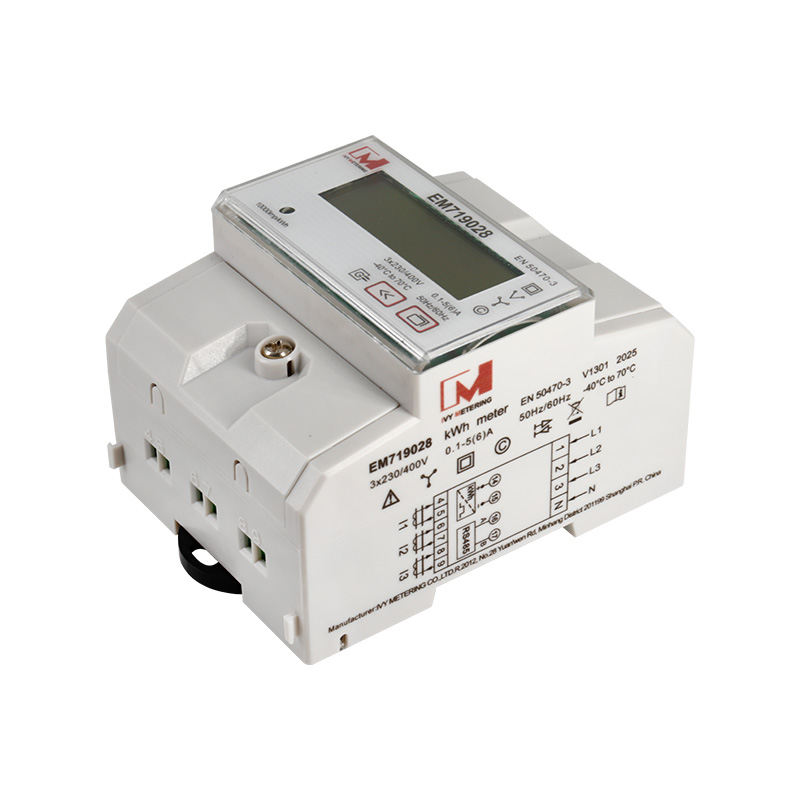

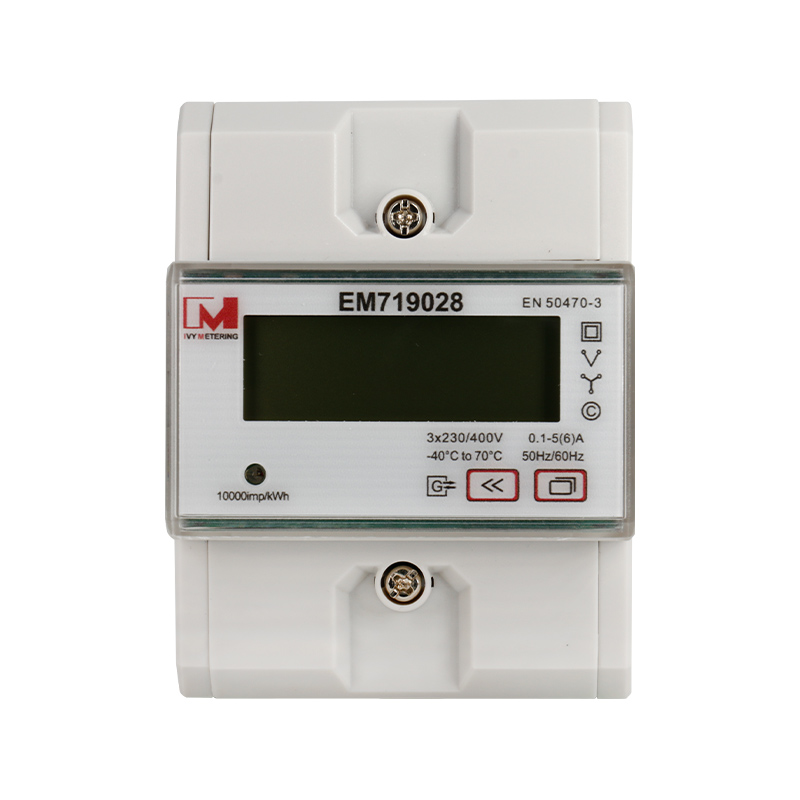

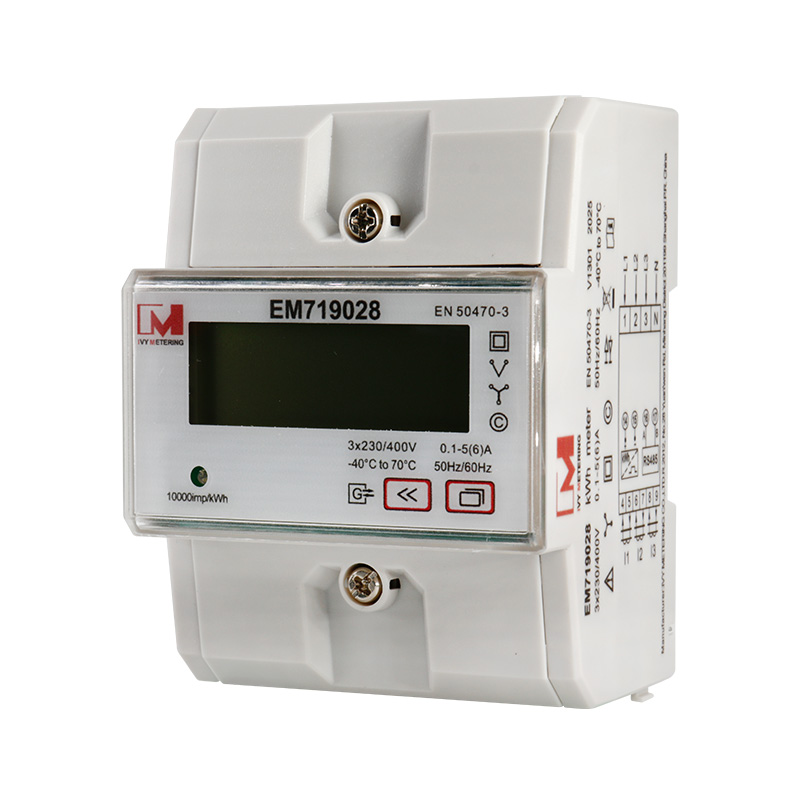

The EM719028 energy meter is a three-phase DIN rail-mounted CT-type energy meter that supports RS485 communication, is compatible with DLT/645 and MODBUS-RTU protocols, has multi-tariff functions, and supports various metering methods. Maximum load: 6A. It can be widely applied in various metering fields and is widely suitable for household and commercial power distribution systems.
| Pulse Constant | 1000imp/kWh |
| Communication | RS485 Modbus/DLT645 |
| Baud Rate | 9600\19200\38400\115200 |
| SO Output | SO refers to the total active power (default) or active/reactive forward power (optional) The pulse constant can be set and is divisible by 96000 |
| Backlight | YES |
| Lithium Battery | YES |
| Multi-Tariff | YES |
| Measurement model | 1.Total=Forward 2.Total=Reverse 3.Total=Forward +Reverse (Default) 4.Total=Forward-Reverse |
| Button | Touch Button |
| Button Function | Left button: Turn the page, Right button: Turn the page and set the information display |
| Default setting | 1000imp/kWh 1000imp/kvarh 9600/NONE/8/1 |
