RS485 Modbus DLT645 3 Phase Bidirectional Energy Meter EN IEC62052-11

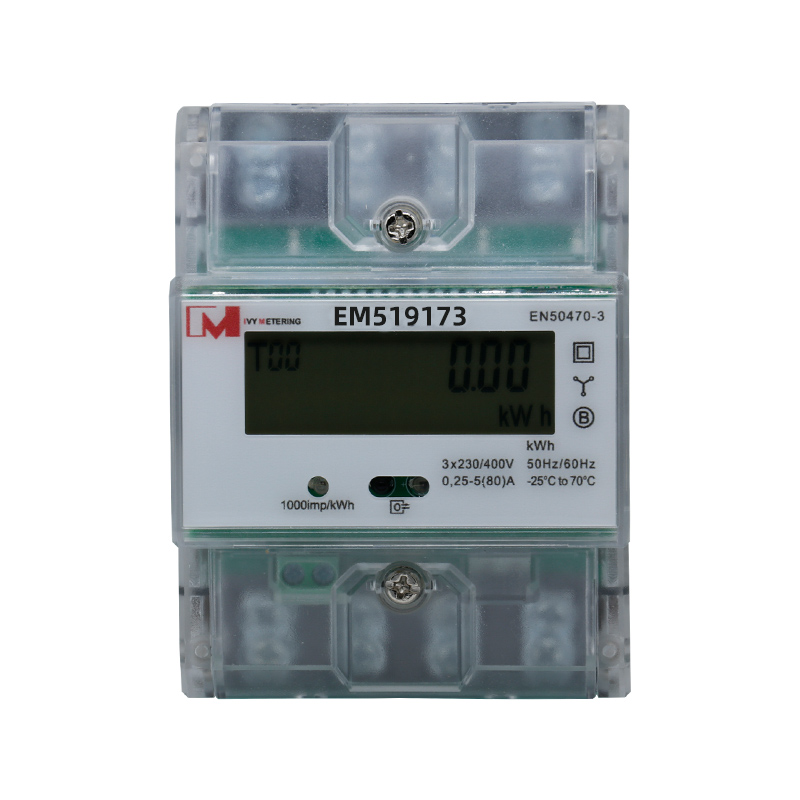

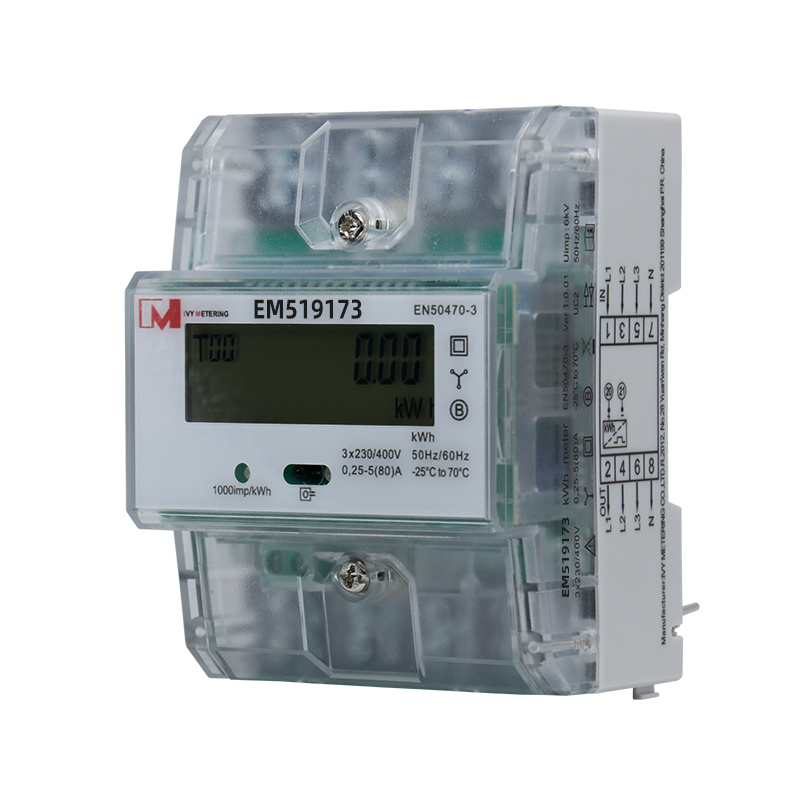

EM519173

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

Bi-directional Measurement

MID Certificate

RS485 Modbus/DLT645

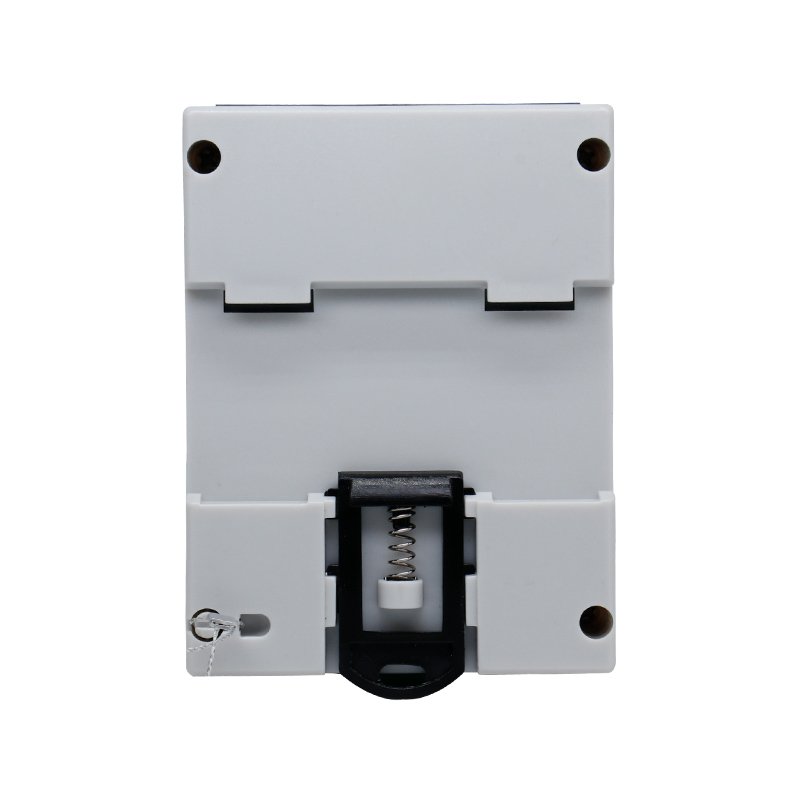

Din Rail Mounted

SO Output

3P4W

Inquire Now Next Product

Product Description

This series of electric meter is a three-phase four-wire DIN rail type direct electric meter, can support a maximum of 80A AC current, the electric meter meets the latest MID certification standard requirements, measurement accuracy and quality are guaranteed, can be widely used in a variety of multi-functional metering application scenarios.

Type	EM519168	EM519171	EM519167	EM519173
Battery	YES	N/A	YES	N/A
Blackout display	YES	N/A	YES	N/A
LCD backlight	YES	N/A	YES	N/A
Voltage	3*230/400V
Current	5(80)A
Accuracy	Class 1
Frequency	50Hz/60Hz
Display	LCD 6+2
Communication	IR		RS485
Pulse Constant	1000imp/kWh
SO Output	Indicates active power, SO output is configurable (default 1000)
Measurement model	1. Total = Forward 2. Total = Reverse 3. Total = Forward + Reverse (default) 4. Total = Forward - Reverse 5. Total = Forward - Reverse (margin)
