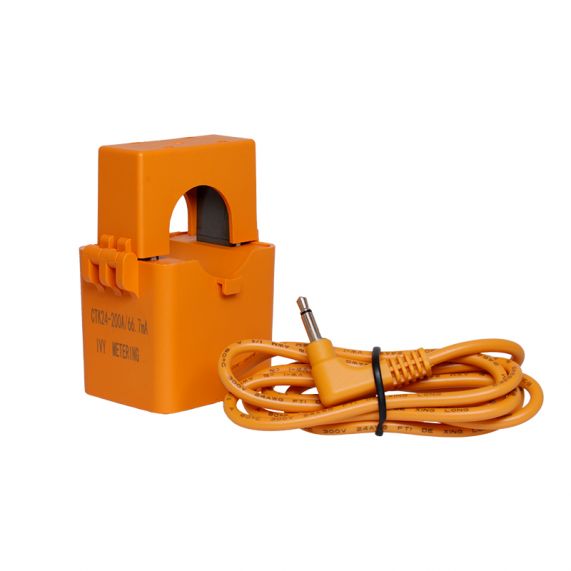

The CTK series split core current transformers are designed with split core silicon steel or nanocrystalline cores, wound with pure copper enameled wire, and the housing is crafted from high-toughness flame retardant PA66 material. Characterized by snap-on split structure for easy installation, high sensitivity and stable precision, they are ideal for power transformation and monitoring applications.
Primary current 5A-500A, secondary current 1mA-5A, inner hole size 10-50mm with diverse specifications
0.5-2 accuracy classes available, with phase error ≤120′ for 0.5 class products
All cores undergo high vacuum heat treatment, ensuring excellent performance, stable precision and high sensitivity
High-toughness flame retardant PA66 housing with good anti-aging performance and aesthetic appearance
Snap-on split structure enables quick and convenient installation without complex operation
| Item | CTK10-60A-20mA | CTK16-150A-50mA | CTK24-200A-66.7mA |
|---|---|---|---|
| Rated Primary Current (Core Through P1-P2) | 60A | 150A | 200A |
| Rated Secondary Current (S1-S2) | 20mA | 50mA | 66.7mA |
| Turn Ratio (N1-N2) | 1:3000 | 1:3000 | 1:3000 |
| Accuracy Class (S1-S2) | 0.5 (phase error ≤120′) | 0.5 | 0.5 |
| Dielectric Strength | 2.5kV/2mA/60SEC (AC50HZ) | 2.5kV/2mA/60SEC (AC50HZ) | 2.5kV/2mA/60SEC (AC50HZ) |
| Insulation Resistance | ≥1000MΩ (500Vdc rated voltage) | ≥1000MΩ (500Vdc rated voltage) | ≥1000MΩ (500Vdc rated voltage) |
| Operating Frequency | 50~60Hz | 50~60Hz | 50~60Hz |
| Load Resistance | 10Ω | 10Ω | 10Ω |
