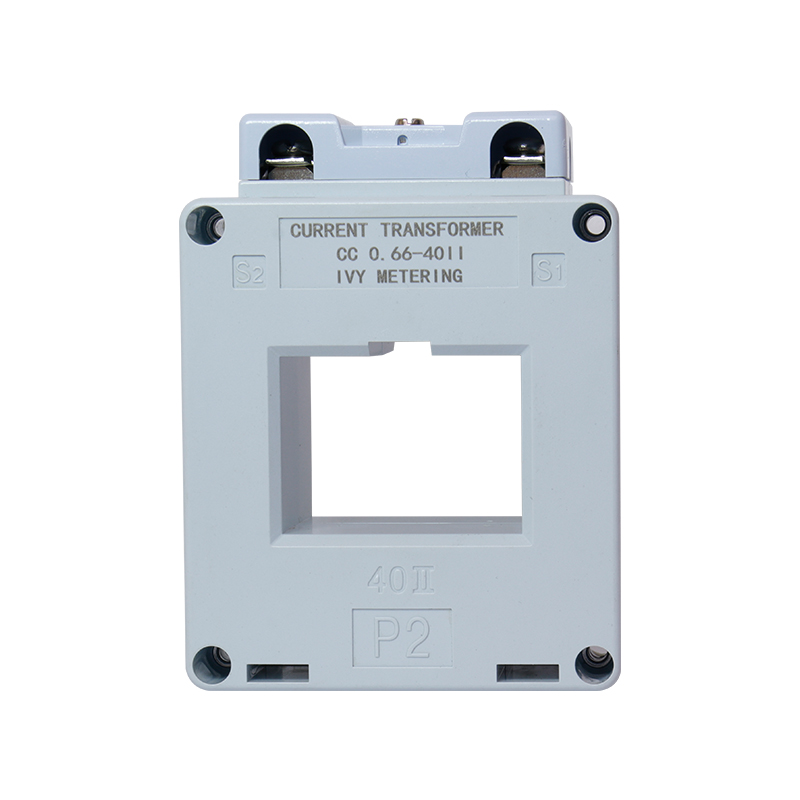

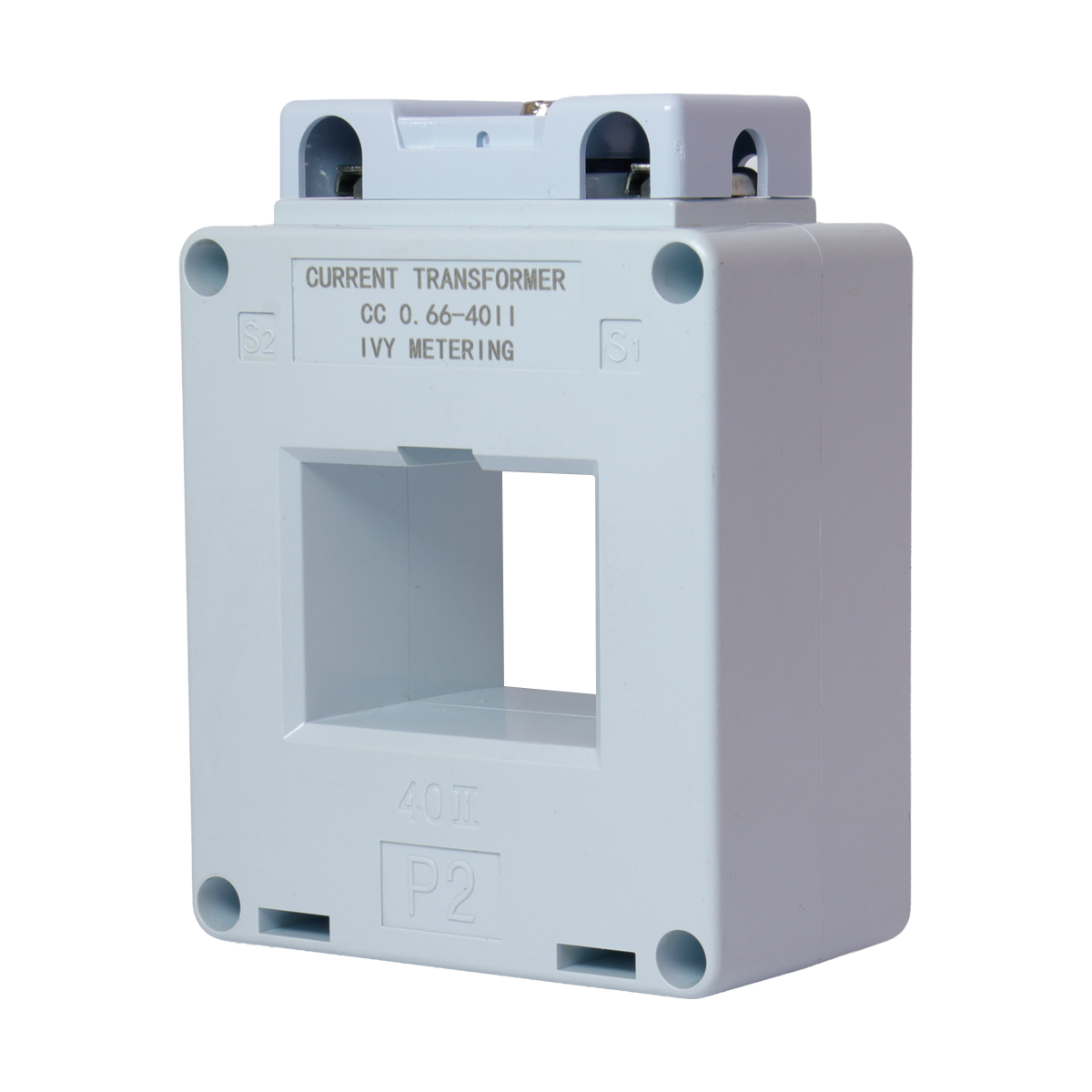

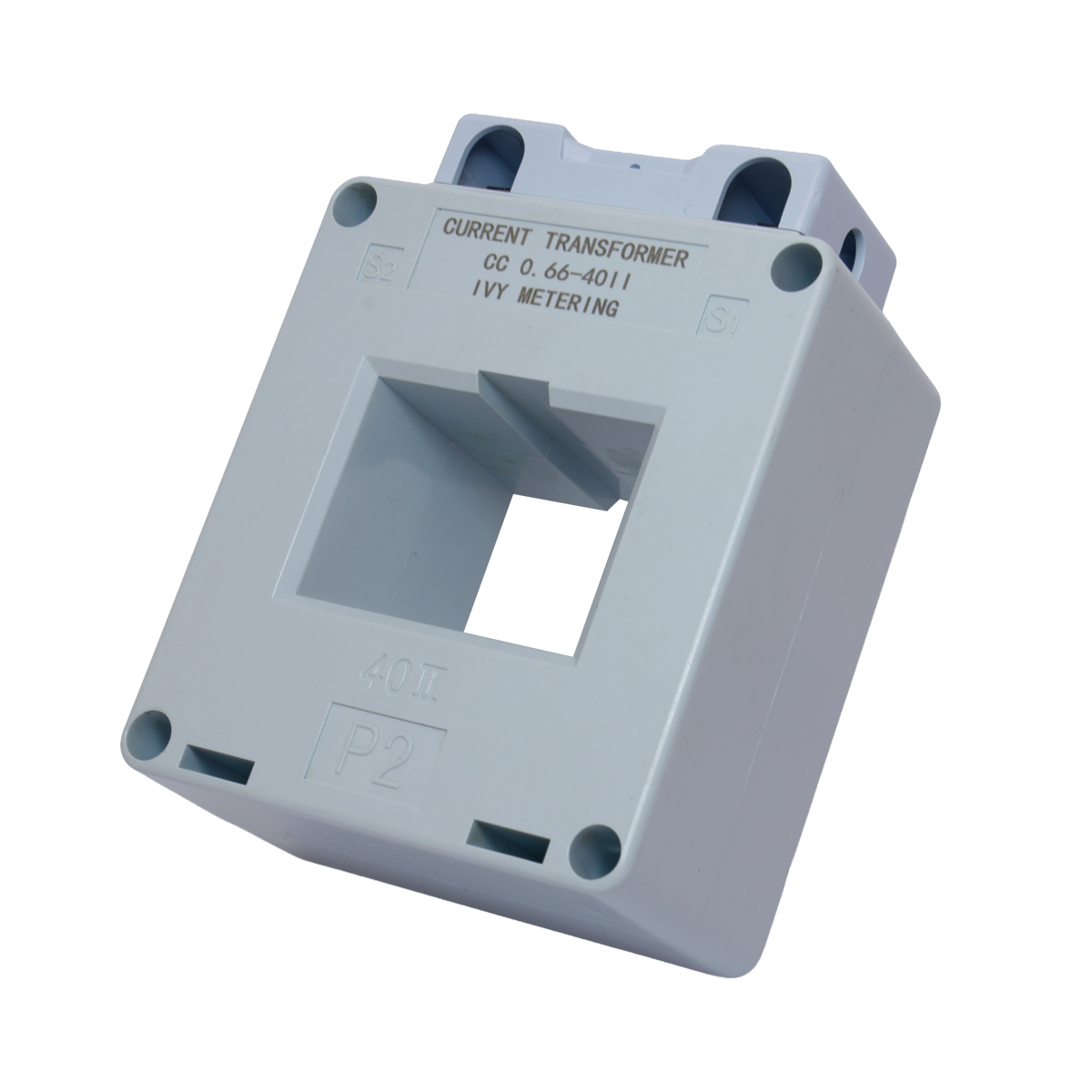

The CC 0.66 II Type series power current transformers are designed with split core silicon steel or nanocrystalline cores, wound with pure copper enameled wire, and the light blue housing is made of PC or nylon engineering plastic. With a wide primary current range (50A-8000A), multiple accuracy classes and reliable fixation (bracket/pressure plate fixing), they are ideal for high-precision AC input current sampling of primary power supply in power transformation and monitoring projects.
Primary current 50A-8000A, secondary current 5A/1A/0.1A with complete specifications for high current applications
Multiple accuracy classes: 0.1, 0.2S, 0.2, 0.5S, 0.5, 1.0 class, 0.2 class for high-precision sampling
Convenient and firm installation with bracket fixing and pressure plate fixing options
All cores undergo high-temperature heat treatment under nitrogen protection, ensuring excellent performance and stable precision
Light blue heat resistant housing (120℃) with flame retardant grade V0/V1, lead-free process and RoHS2.0 compliance
| Item | CC 0.66-30II | CC 0.66-40II-B | CC 0.66-60×50II | CC 0.66-80×50II |
|---|---|---|---|---|
| Rated Primary Current (Core Through) | 200A | 1000A | 2000A | 3000A |
| Rated Secondary Current (S1-S2) | 5A | 5A | 1A | 5A |
| Rated Voltage | 660V | 660V | 660V | 660V |
| Rated Burden (S1-S2) | 2.5VA | 10VA | 20VA | 10VA |
| Accuracy Class (S1-S2) | 0.5 | 0.5 | 0.2 | 0.2 |
| Coil Turn Ratio (N1:N2) | 1:40 | 1:200 | 1:2000 | 1:600 |
| Isolation Withstand Voltage (P-S) | 3000 Vac (1mA, 1min) | 3000 Vac (1mA, 1min) | 3000 Vac (1mA, 1min) | 3000 Vac (1mA, 1min) |
| Insulation Resistance (P-S) | ≥100MΩ (500Vdc rated voltage) | ≥100MΩ (500Vdc rated voltage) | ≥100MΩ (500Vdc rated voltage) | ≥100MΩ (500Vdc rated voltage) |
| Operating Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Operating Temperature | -30℃~+120℃ | -30℃~+120℃ | -30℃~+120℃ | -30℃~+120℃ |
| Maximum Operating Altitude | ≤3000m | ≤3000m | ≤3000m | ≤3000m |
| Secondary Output | Copper terminals S1, S2 with protective terminal cover | Copper terminals S1, S2 with protective terminal cover | Copper terminals S1, S2 with protective terminal cover | Copper terminals S1, S2 with protective terminal cover |
| Housing | Light blue, heat resistant to 120℃; Flame retardant grade V0 or V1 | Light blue, heat resistant to 120℃; Flame retardant grade V0 or V1 | Light blue, heat resistant to 120℃; Flame retardant grade V0 or V1 | Light blue, heat resistant to 120℃; Flame retardant grade V0 or V1 |
| Hardware Components | 48H salt spray resistant | 72H salt spray resistant | 72H salt spray resistant | 72H salt spray resistant |
| Process Requirements | Lead-free | Lead-free | Lead-free | Lead-free |
| Enameled Wire Class | Class H (180℃) | Class H (180℃) | Class H (180℃) | Class H (180℃) |
| Insulation Class | E | E | E | E |
| Environmental Standard | RoHS2.0 | RoHS2.0 | RoHS2.0 | RoHS2.0 |
| Application Scenario | AC input current sampling of primary power supply | AC input current sampling of primary power supply | AC input current sampling of primary power supply | AC input current sampling of primary power supply |
| Standard Test Equipment | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester |
