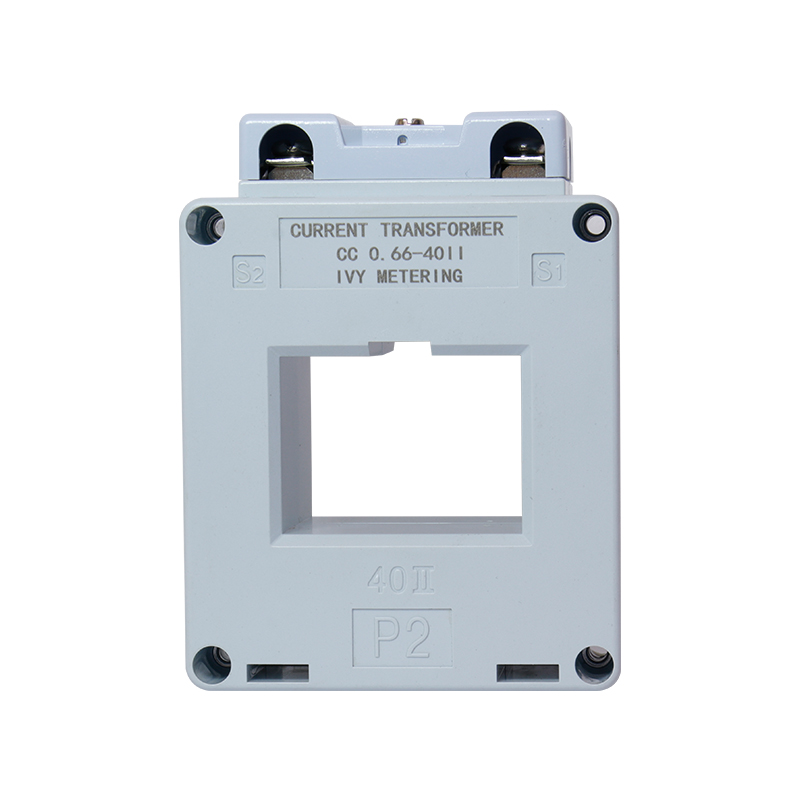

The CC 0.66 I Type series power current transformers adopt split core silicon steel or nanocrystalline cores, wound with pure copper enameled wire, and the white housing is made of high-quality PC or nylon engineering plastic. Equipped with multiple flexible installation methods (bracket fixing, pressure plate fixing, DIN rail mounting) and stable precision, they are suitable for various power transformation and monitoring applications with primary current 50A-2000A.
Primary current 50A-2000A, secondary current 5A/1A with complete specifications, meeting diverse current sampling needs
Multiple accuracy classes: 0.1, 0.2S, 0.2, 0.5S, 0.5, 1.0 class for different precision requirements
Three installation methods available: bracket fixing, pressure plate fixing and DIN rail mounting, highly adaptable to on-site conditions
All cores undergo high-temperature heat treatment under nitrogen protection, ensuring superior performance and stable precision
White heat resistant housing (120℃) with flame retardant grade V0/V1, lead-free process and RoHS2.0 compliance
| Item | CC 0.66-30I-A | CC 0.66-40I | CC 0.66-40 |
|---|---|---|---|
| Rated Primary Current (Core Through) | 200A | 600A | 800A |
| Rated Secondary Current (S1-S2) | 5A | 1A | 5A |
| Rated Voltage | 660V | 660V | 660V |
| Rated Burden (S1-S2) | 2.5VA | 10VA | 10VA |
| Accuracy Class (S1-S2) | 0.5 | 0.5 | 0.5 |
| Coil Turn Ratio (N1:N2) | 1:40 | 1:600 | 1:160 |
| Isolation Withstand Voltage (P-S) | 3000 Vac (1mA, 1min) | 3000 Vac (1mA, 1min) | 3000 Vac (1mA, 1min) |
| Insulation Resistance (P-S) | ≥100MΩ (500Vdc rated voltage) | ≥100MΩ (500Vdc rated voltage) | ≥100MΩ (500Vdc rated voltage) |
| Operating Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Operating Temperature | -30℃~+120℃ | -30℃~+120℃ | -30℃~+120℃ |
| Maximum Operating Altitude | ≤3000m | ≤3000m | ≤3000m |
| Secondary Output | Copper terminals S1, S2 with protective terminal cover | Copper terminals S1, S2 with protective terminal cover | Copper terminals S1, S2 with protective terminal cover |
| Housing | White, heat resistant to 120℃; Flame retardant grade V0 or V1 | White, heat resistant to 120℃; Flame retardant grade V0 or V1 | White, heat resistant to 120℃; Flame retardant grade V0 or V1 |
| Hardware Components | 72H salt spray resistant | 72H salt spray resistant | 72H salt spray resistant |
| Process Requirements | Lead-free | Lead-free | Lead-free |
| Enameled Wire Class | Class H (180℃) | Class H (180℃) | Class H (180℃) |
| Insulation Class | E | E | E |
| Environmental Standard | RoHS2.0 | RoHS2.0 | RoHS2.0 |
| Standard Test Equipment | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester | Current transformer calibrator; Precision current transformer; Current and voltage generator; Resistance box; Digital multimeter; Power frequency withstand voltage tester |
