How to Connect RS485 Energy Meters to a Remote Monitoring System

What Is RS485 Energy Meter Remote Monitoring?

RS485 energy meter remote monitoring is a method of collecting electricity measurement data from energy meters through an RS485 communication interface and transferring that data to a remote server or monitoring platform.

RS485 is widely used in industrial and commercial energy metering because it supports reliable serial communication over suitable cable connections and allows multiple compatible devices to share a communication bus. However, an RS485 interface alone does not provide internet connectivity. When meters need to send data to a remote location, an additional communication device or gateway may be required.

An RS485-to-4G converter can bridge compatible RS485 devices and a cellular network. Depending on the converter's communication mode and the system configuration, meter data can be transmitted to a remote server for monitoring, analysis, reporting, or integration with an energy management system.

This approach is particularly useful for factories, commercial buildings, distributed energy installations, and other projects where meters are installed across multiple locations.

How Does an RS485 Energy Meter Connect to a Remote Monitoring System?

A typical system consists of an RS485 energy meter, an RS485-to-4G converter, a compatible 4G cellular network, and a remote server or monitoring platform.

The energy meter measures electrical parameters such as voltage, current, active power, and energy consumption, depending on its functions. It makes supported measurement data available through its RS485 interface. The converter communicates with the meter, processes or forwards the data according to its configuration, and transfers the information through a cellular connection.

The remote server receives the transmitted data and makes it available to authorized applications or monitoring software. The platform's actual functions depend on the server software and system integration.

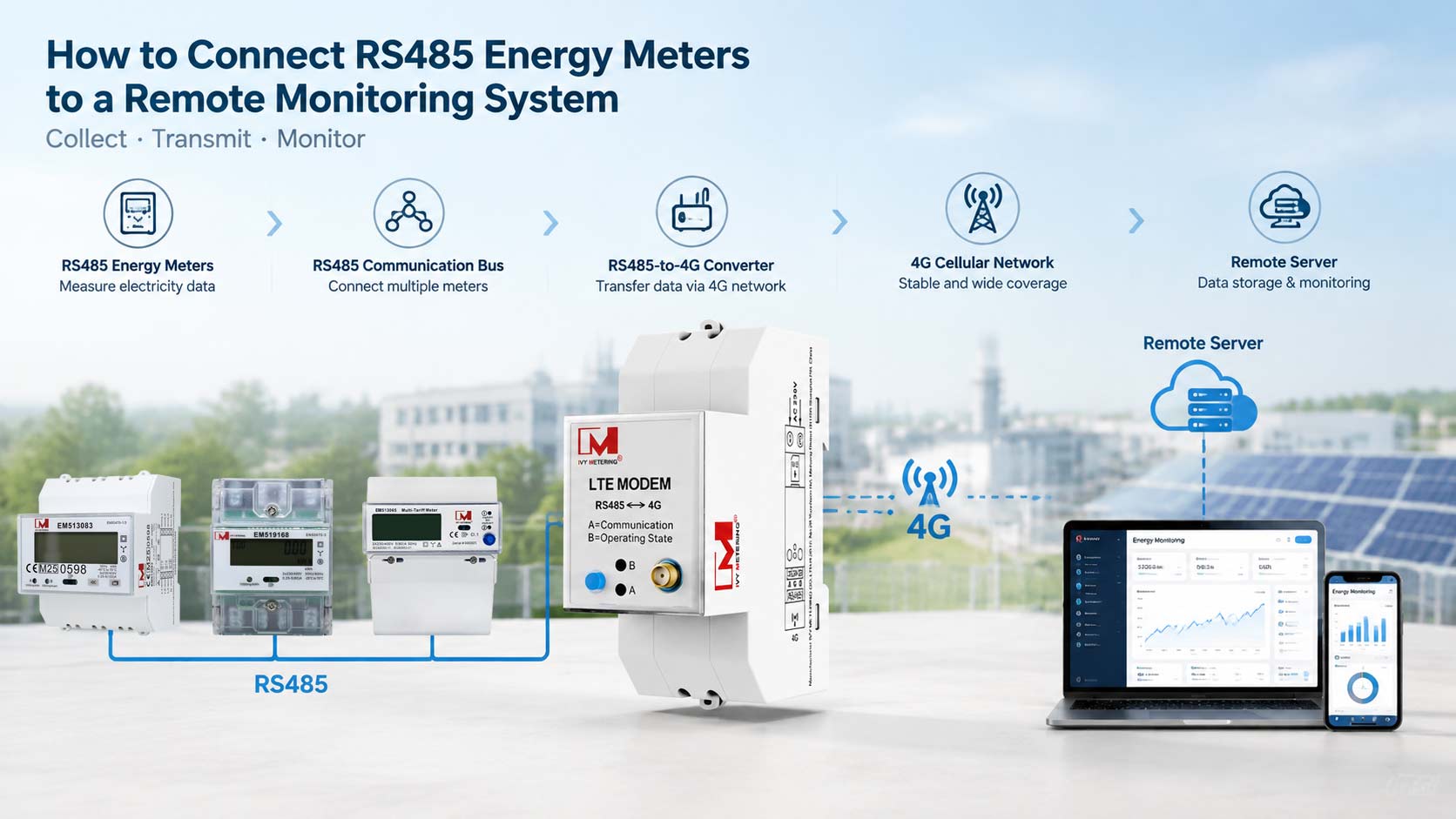

The basic communication architecture is:

RS485 Energy Meter → RS485 Communication Bus → RS485-to-4G Converter → 4G Cellular Network → Remote Server or Monitoring Platform

For projects involving multiple meters, several compatible RS485 energy meters can share a communication bus connected to the converter. Each meter must be configured with an appropriate communication address, and the converter must support the required device protocol and data collection method.

It is important to distinguish communication hardware from monitoring software. An RS485-to-4G converter provides a communication path, but it does not automatically provide a complete energy monitoring platform.

How to Connect RS485 Energy Meters to a Remote Monitoring System

Step 1: Check the RS485 Energy Meter Compatibility

Before connecting the equipment, confirm that the energy meter supports RS485 communication and identify its communication protocol. Modbus RTU is commonly used by industrial energy meters, but not every RS485 meter uses the same protocol or register definitions.

Check the meter's communication manual for its baud rate, data bits, parity, stop bits, device address, and register map. These settings determine how another device can read the meter's data.

You should also identify which measurement values are available through communication, such as active energy, voltage, current, power, or power factor. The exact parameters depend on the meter model.

Step 2: Connect the Meter to the RS485-to-4G Converter

Connect the RS485 terminals of the energy meter to the corresponding RS485 terminals of the converter, following the manufacturers' wiring instructions. The A/B terminal labels and polarity conventions should be checked carefully because labeling may differ between devices.

For a multi-meter installation, compatible meters can usually be connected to the same RS485 bus, provided the bus topology, addressing, wiring, and electrical loading meet the equipment specifications.

Use suitable twisted-pair communication cable and follow the recommended grounding, shielding, and termination practices for the installation. Cable length, electrical interference, and incorrect wiring can affect communication reliability.

The converter's power supply and installation requirements must also be checked before commissioning.

Step 3: Configure the RS485 Communication Parameters

The energy meter and converter must use compatible communication settings. The baud rate, data format, parity, and stop bits should match the meter's configuration.

For Modbus RTU installations, each meter on the same communication bus should have a unique device address. Duplicate addresses can cause communication conflicts and unreliable readings.

The converter must also be configured to communicate with the meter using the correct protocol and data acquisition method. Depending on the device and application, the converter may poll meter registers or forward data through a supported communication mode.

Correct configuration is essential because a physical RS485 connection does not guarantee that the devices can exchange meaningful data.

Step 4: Configure the 4G Network Connection

Insert or configure a compatible SIM card if required by the converter, then confirm that the device supports the cellular network bands and service available at the installation site.

The installation should provide adequate cellular signal strength and an appropriate mobile data plan. Network availability, SIM card activation, carrier requirements, and antenna placement can all affect connectivity.

Next, configure the converter's network parameters according to its supported operating mode. Depending on the product, these settings may include a server address, port, connection mode, or other communication parameters.

The precise configuration procedure depends on the converter model and the server-side communication requirements.

Step 5: Configure Data Collection and Upload Settings

Once local communication and cellular connectivity are working, configure the required data collection and transmission intervals.

The data collection interval determines how frequently the system reads values from the energy meters. The upload interval determines how frequently collected data is transmitted or reported to the remote system. These intervals are not necessarily identical.

For example, a commercial building may require regular energy consumption updates, while an industrial monitoring project may need more frequent readings for operational analysis. The appropriate settings depend on the application's monitoring requirements, communication capacity, and data volume.

For multi-meter systems, consider the time required to poll every meter and the possibility of delayed responses. A shorter upload interval does not automatically guarantee that every meter will be read and reported within that period.

Step 6: Connect to the Remote Monitoring Platform

The final step is to ensure that the converter and remote server use a compatible communication method and data format.

The server or monitoring platform must know how to receive and interpret the transmitted information. For Modbus-based applications, this may require mapping register addresses to the corresponding measurement values and accounting for data types, scaling factors, and register order.

If the converter forwards raw Modbus data, the receiving application may need to perform the polling and data interpretation. If the converter uses a different supported data transmission mode, the server configuration must follow that mode instead.

After configuration, verify that the platform displays plausible readings and that the values match those shown locally on the meters. Test communication interruptions and recovery where appropriate before deploying the system across an entire site.

Can One RS485-to-4G Converter Connect Multiple Energy Meters?

Yes. A suitable RS485-to-4G converter can collect data from multiple compatible energy meters connected to the same RS485 communication bus.

This arrangement can reduce the need for a separate cellular communication device for every meter. It is useful in factories, commercial buildings, energy distribution installations, and other projects where multiple meters are located within a suitable communication network.

However, the practical number of meters depends on the converter's supported device capacity, RS485 bus requirements, polling strategy, communication settings, and the response times of the connected meters.

For example, IVY METERING's J119026 RS485-to-4G converter supports up to 128 downstream devices according to its product specifications. The actual performance of a multi-meter installation still depends on the project configuration and communication workload.

Before selecting a converter for a large installation, confirm the number of devices, required measurement points, polling frequency, communication protocol, and expected data volume.

What Are the Benefits of Using an RS485-to-4G Converter?

Remote Meter Reading

An RS485-to-4G converter allows compatible energy meters to communicate with a remote data collection system through a cellular network. This can reduce dependence on manual meter reading and help operators access measurement data from locations that are difficult to visit frequently.

Reusing Existing Energy Meters

In suitable installations, businesses can retain their existing RS485 energy meters instead of replacing every meter solely to obtain remote communication. Compatibility checks are essential because the converter must support the meters' communication protocol and the required data transmission method.

Centralized Data Collection

Multiple meters can be connected to one converter when the supported device capacity and RS485 bus requirements permit. This helps centralize data collection and simplifies communication architecture for installations with several meters.

Flexible Deployment

4G communication can be useful at sites where a suitable wired internet connection is unavailable or inconvenient to install. However, cellular coverage, supported frequency bands, SIM card requirements, and data service availability must be verified for each deployment location.

Remote Device Management

Some converters support configurable reporting intervals, heartbeat settings, or remote firmware upgrades. These functions can help operators manage communication devices after installation, depending on the product's supported features and management infrastructure.

How to Choose an RS485-to-4G Converter for Energy Meter Monitoring

Choosing the right converter requires more than checking whether it has an RS485 interface and a 4G modem.

First, verify protocol compatibility. If the energy meter uses Modbus RTU, confirm that the converter supports the communication method required by the application. Check whether the system requires register polling, serial data forwarding, or another supported operating mode.

Second, confirm the downstream device capacity. A project involving two meters has different requirements from a factory that needs to collect data from dozens or hundreds of meters. Consider device addressing, polling time, and the amount of data collected from each meter.

Third, check the cellular network requirements. The converter must support the frequency bands and network services available in the target country. Confirm SIM card requirements and cellular signal conditions before installation.

Fourth, review the server integration requirements. Verify the converter's supported network protocols, data formats, server connection settings, and configuration methods. A gateway that connects successfully to the cellular network may still require additional integration work before its data can be used by an existing monitoring platform.

Finally, evaluate operational requirements such as configurable data reporting, heartbeat intervals, device management, and firmware maintenance. These features can affect the long-term usability of a remote monitoring installation.

Common Problems When Connecting RS485 Energy Meters to a Remote Server

The Converter Cannot Read the Energy Meter

Check the RS485 wiring, communication polarity, baud rate, parity, stop bits, and device address. Confirm that the meter and converter support compatible communication protocols and that the requested register addresses are valid.

The Meter Communicates Locally but Data Does Not Reach the Server

If local RS485 communication works, investigate the cellular connection and server configuration. Check the SIM card, network signal, mobile data service, server address, port, firewall rules, and the converter's configured transmission mode.

Some Meters Respond but Others Do Not

For multi-meter systems, check for duplicate Modbus addresses, wiring problems, excessive bus loading, unsuitable topology, and inconsistent communication parameters. Also verify that the converter's polling configuration includes the affected devices.

Data Updates Are Delayed

Review the polling interval, upload interval, number of connected meters, register count, device response time, and network conditions. Collecting a large amount of data from many meters may require a longer cycle than collecting a few values from a single meter.

The Server Receives Data but Displays Incorrect Values

Check the register map, data type, byte or word order, scaling factor, and interpretation of signed or unsigned values. Correct transmission does not necessarily mean that the receiving platform is interpreting the data correctly.

Frequently Asked Questions

Do RS485 energy meters need a 4G converter for remote monitoring?

Not always. An RS485-to-4G converter is useful when the meters communicate through RS485 and need to transmit data over a cellular network. If the meters already have suitable network connectivity or another compatible gateway is installed, an additional 4G converter may not be necessary.

Can an RS485-to-4G converter work with Modbus RTU energy meters?

It can when the converter supports the required Modbus RTU communication method and is configured correctly. Always verify the meter's register map, serial communication parameters, and the converter's supported operating modes before purchase.

Can I monitor energy meters without a wired internet connection?

Yes, if the meters are connected to a compatible RS485-to-4G converter and a suitable cellular network is available. The converter can use the cellular connection to communicate with a remote server, subject to the product's network and configuration requirements.

How many energy meters can connect to one RS485-to-4G converter?

The supported number varies by converter model. For example, the IVY METERING J119026 supports up to 128 downstream devices according to its product specifications. Actual deployment capacity depends on wiring, device compatibility, polling settings, and communication workload.

Does an RS485-to-4G converter include energy monitoring software?

Not necessarily. A converter provides communication between compatible field devices and a remote system, but monitoring dashboards, historical data storage, reporting, and analytics may require separate server software or a third-party platform.

What information is needed before purchasing an RS485-to-4G converter?

Prepare the number and model of the meters, communication protocol, serial settings, target country, cellular network requirements, data collection frequency, and server integration requirements. This information helps determine whether the converter is suitable for the application.

Conclusion

Connecting RS485 energy meters to a remote monitoring system can help businesses centralize electricity data collection, reduce reliance on manual meter reading, and make better use of existing metering equipment.

An RS485-to-4G converter provides a practical communication option when compatible meters need to transmit data through a cellular network. Successful deployment depends on correct wiring, protocol compatibility, device configuration, cellular coverage, and server integration.

IVY METERING provides the J119026 RS485-to-4G converter for applications requiring remote communication with compatible RS485 devices. With support for up to 128 downstream devices, configurable data reporting, adjustable heartbeat intervals, and remote firmware upgrades, it can be evaluated for multi-meter data collection projects.

Contact IVY METERING to discuss your application, the number of connected meters, communication requirements, and project specifications.
