EM519039
Multi-measurement: kWh, W, V, A, PF, Hz, etc.
LoRaWAN Communication
Prepaid function
Built-in relay
Din Rail Mounted
LCD display
3P4W

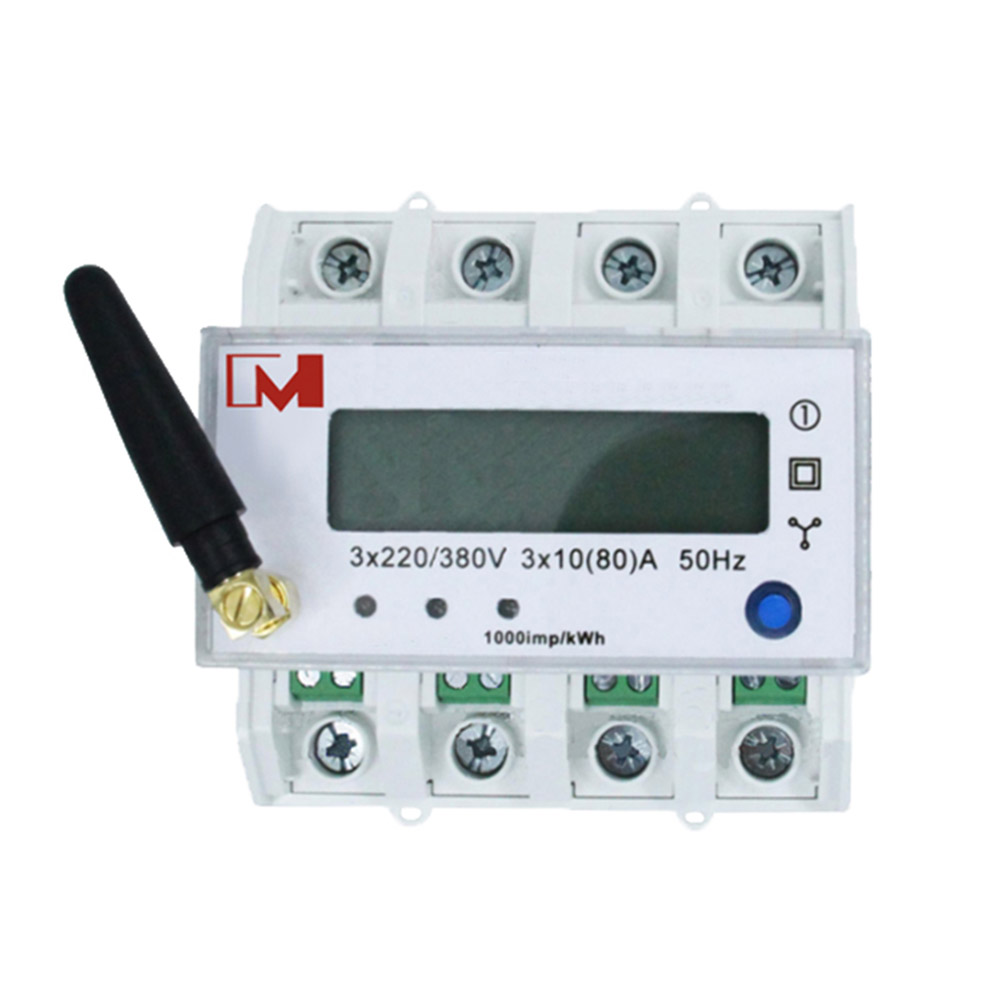

This is a three-phase smart electricity meter, which supports LoRaWAN communication, has built-in relay, can be connected with intelligent equipment, and can realize remote meter reading, remote control, etc. The meter has a visual LCD display, which can measure voltage, current, power, electricity quantity, frequency, power factor. The meter can be easily installed by using the guide rail installation method.
Key Advantage:
LoRaWAN is suitable for transmitting small size payloads (like meter data) over long distances. LoRa modulation provides a significantly greater communication range with low bandwidths than other competing wireless data transmission technologies, such as WIFI and GPRS.
Other Advantages:
1. Ultra low power - LoRaWAN end devices are optimized to operate in low power mode and can last up to 10 years on a single coin cell battery.
2. Long range - LoRaWAN gateways can transmit and receive signals over a distance of over 10 kilometers in rural areas and up to 3 kilometers in dense urban areas.
3. Deep indoor penetration - LoRaWAN networks can provide deep indoor coverage, and easily cover multi floor buildings.
4. License free spectrum - You don’t have to pay expensive frequency spectrum license fees to deploy a LoRaWAN network.
5. High capacity - LoRaWAN Network Servers handle millions of messages from thousands of gateways.
6. Public and private deployments - It is easy to deploy public and private LoRaWAN networks using the same hardware (gateways, end devices, antennas) and software (UDP packet forwarders, Basic Station software, LoRaWAN stacks for end devices).
7. End-to-end security - LoRaWAN ensures secure communication between the end device and the application server using AES-128 encryption.
8. Low cost - Minimal infrastructure, low-cost end nodes and open source software.
Features
(1)Measurement of bi-directional (forward&reverse) energy, active and reactive energy, voltage,current, active power, frequency, power factor, MD (Max Demand)
(2)LoRa Communication LoRaWAN Protocol；Regional Frequency Band: EU868/433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz
(3)Two display modes: data scroll display or page turning by pressing button
(4)Support setting parameters and reading data remotely
(5)IP51 indoor protection
(6)Enhanced signal through optional based/stick type antenna
| Product Name | LoRaWAN Energy Meter With LoRa Antenna |
| Ref. voltage | 3×220/380V |
| Ref. current | 3×10(80)A |
| Impulse constant | 1000imp/kWh |
| LCD display | LCD5+1 |
| Operation temp. | -20~+70℃ |
| Relative humidity | <95% |
| Ref. frequency | 50Hz |
| Accuracy class | Cl.1 |
| Starting current | 0.4%/Ib(CI.1) |
| Load control | Built-in 80A magnetic latching relay |
| Power consumption | ≤ 1W,<10VA |
| Standard compliant | IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 |
| Communication | LoRaWAN, TTL Reserved |
| Frequency Band | EU433MHz, EU868MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz |
| LoRa Antenna | SMA Socket (Based/Stick Type) |
