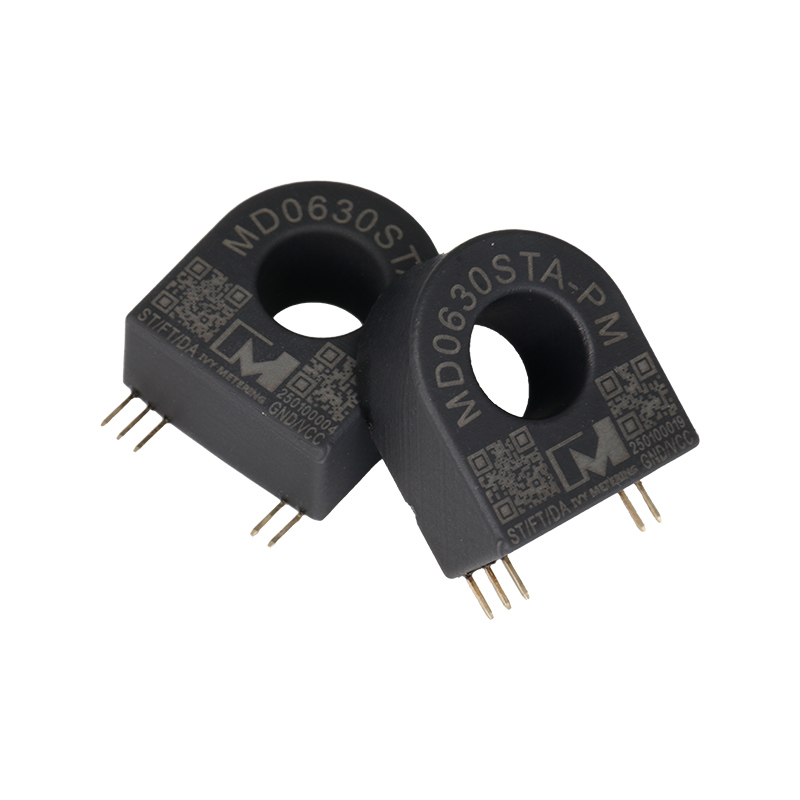

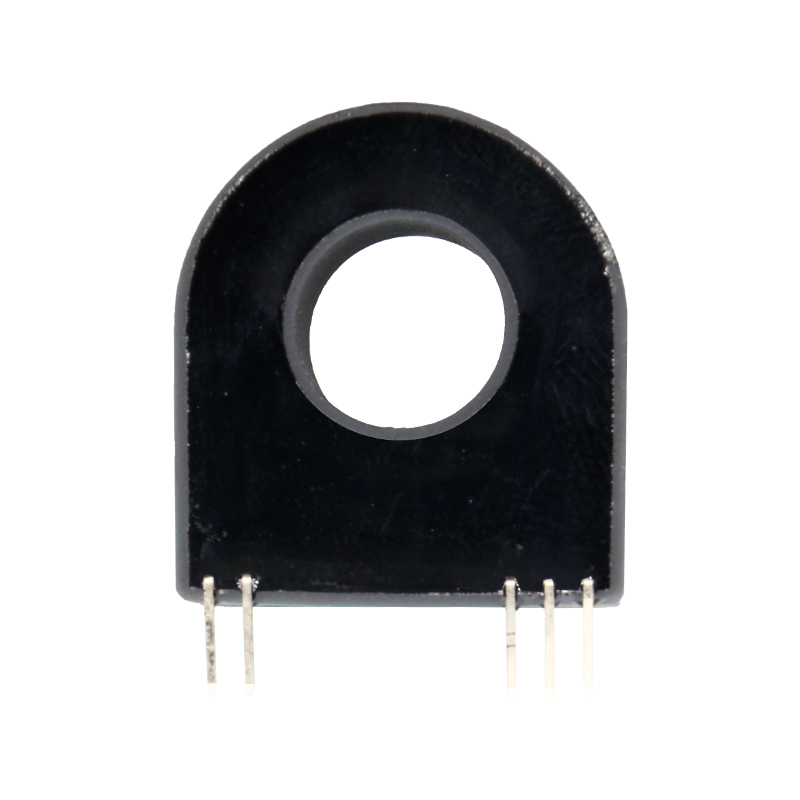

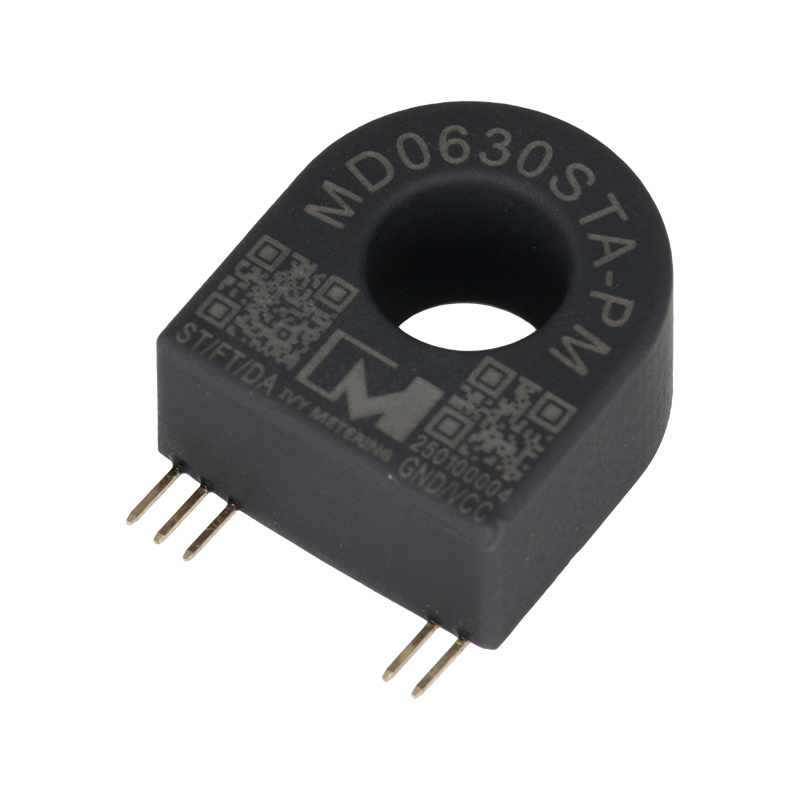

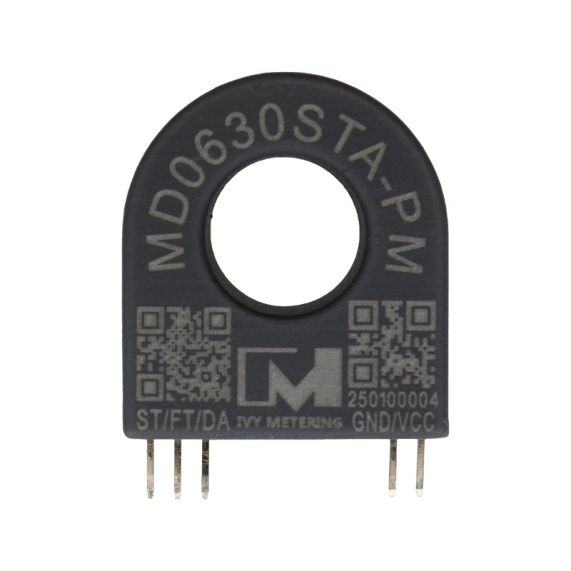

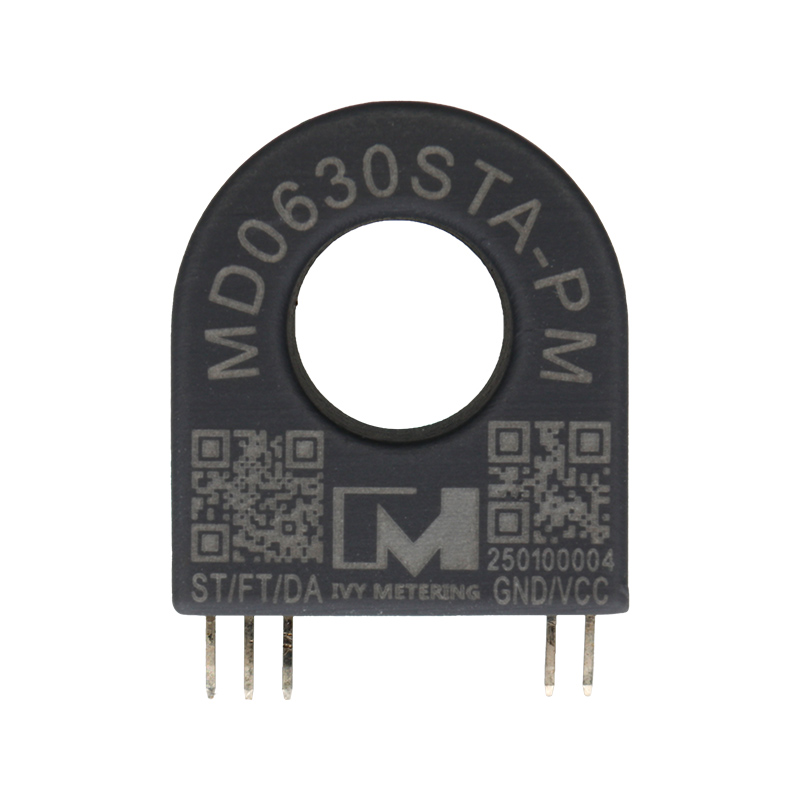

PCB Mount Leakage Current Sensor

The MD0630STA-PM is an ACDC leakage current sensor, featuring high sensitivity, accurate measurement, small size and integration. When a DC leakage current of 3 to 6mA or an AC leakage current of 15 to 30mA is detected, an alarm signal will be output. It also has a self-checking function. Through this function, it can be determined in real time whether the sensor is in a normal working state. If the sensor fails, the self-checking output terminal will be unable to output feedback signals.

This series of products have significant applications in multiple fields such as industrial equipment, medical instruments, meters, new energy, smart cities, and the Internet of Things. It is particularly suitable for charging electric vehicles, electric motorcycles and electric bicycles in various public places, charging fees and electrical safety management. Easy to use and convenient to install.

• Wide voltage input :DC4.85-5.5V

• Measurement current range: DC 2-15mA, AC 3-100mA

• Alarm current range: DC 3-6mA, AC 15-30mA

• Alarm output: OpenCollector output

• It has a self-checking function. By testing with the Test pin, it can be determined whether the sensor is working properly

• Operating environment temperature: -25℃ to +80℃

• Plastic casing, flame-retardant V0 resistant
